Relay Protection of Substation

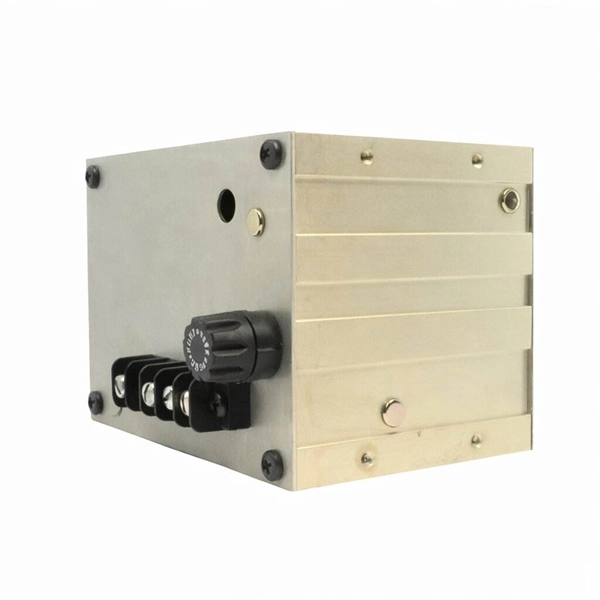

Relay protection in substations ensures the safety, reliability, and stability of electrical power systems by detecting faults and isolating affected zones.Purpose of Relay ProtectionRelay protection is critical in both High Voltage (HV) and Medium Voltage (MV) substations to safeguard transformers, circuit breakers, lines, and other substation assets. Relays continuously monitor electrical parameters such as current, voltage, frequency, and phase angle, and they trip circuit breakers to isolate faults, preventing equipment damage, fire hazards, and cascading outages .Types of RelaysElectromechanical Relays: Traditional relays with coils, armatures, and contacts. They operate mechanically when a fault is detected. Advantages include simplicity and reliability, but they are slower and less flexible .Solid-State Relays: Use electronic components like transistors and diodes for faster and more accurate operation compared to electromechanical relays .Digital/Numerical Relays: Microprocessor-based relays that convert analog signals to digital form and use algorithms to detect faults. They are programmable, multifunctional, and can integrate with SCADA and IEC 61850 systems .Key Protection FunctionsModern relays implement standardized ANSI/IEEE functions, including:Overcurrent Protection (ANSI 50/51)Distance Protection (ANSI 21)Differential Protection (ANSI 87)Under/Over-Frequency (ANSI 81)Breaker Failure Protection (ANSI 50BF)Auto-Reclose (ANSI 79)Synch-Check (ANSI 25)Logic-Based Automation and Lockout (ANSI 94) Relay Protection Calculations and SettingsEffective relay protection requires precise calculations and settings:Current and Voltage Sensing: Determines relay sensitivity based on normal and fault currents.Fault Level Calculations: Evaluates symmetrical and asymmetrical fault currents for different fault types.Time-Dial Settings: Ensures proper response time and coordination with downstream relays.Impedance Calculations: Used in distance protection to define zone reach along transmission lines.Transformer Differential Settings: Includes differential current thresholds, inrush restraint, and harmonic filtering to prevent false tripping during transformer energization .Coordination and IntegrationRelays must be coordinated with other protective devices to ensure selective isolation of faults. Modern substations integrate relays with:SCADA Systems: For real-time monitoring and control.RTUs and RTACs: Interface devices for data acquisition and control.PLCs and HMIs: For automation, load management, and operator interaction.IEDs: Intelligent devices combining protection, control, and monitoring functions .Cybersecurity ConsiderationsAs substations become digitized, relays are networked and exposed to cyber threats. Compromised relays can issue false trips, alter logic, or disable protection zones, potentially causing large-scale blackouts. Securing relays against cyber-physical attacks is essential for grid resilience .SummaryRelay protection in substations is a multi-layered system combining electromechanical, solid-state, and digital relays with advanced control and monitoring equipment. Proper calculations, settings, coordination, and cybersecurity measures ensure safe, reliable, and efficient operation of the power grid.
